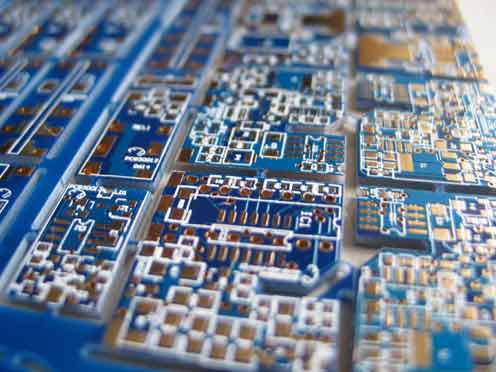

• 1 or 2 sided rectangular PCBs (same price)
• FR4 high quality 1.55mm base material
• PCB size: max X or Y = 440mm
• 35 or 70um cupper (1 or 2 oz) thickness (1-2 sided)
• UL approved, blue, 2 sided varnish (blue is Electrobrains' special color, green on request)
• component print, one-sided, white
• conductors and clearance distance : min. 0.13mm (5mil)
• annular ring: min. 0.15mm (6mil)
• hole size: min. 0.3mm (12mil)
• through-plated holes
• HAL lead free surface (RoHS)
• up to 6 straight V-cuts allowed
• routed path allowed (router min. 1.6mm)
• price includes all inititial costs!
• finished Gerber and NCD drill files must be provided. Protel files can also be accepted for an added €20 (CHF 30)

€ 900 / 5.0m2
not incl. VAT (MwSt) for EU*

CHF 1500 / 5.0m2
incl 7.6% VAT (MwSt) for Switzerland

including transport right from the factory to your door!

That is the same as
300 euro cards (100x160mm) or
500 PCBs with the size 100x100mm or
2000 PCBs with the size 50x50mm!

Delivery time: 3-4 weeks (depending on workload of factory)

* If orders are made from countries other than Germany, Austria, France and Italy, the price must be slightly adapted (due to higher shipping cost).

For order of the SUPER PRICE OFFER, you need to pay in advance. After sending your order, you will receive an email with the bank information (Bank in Switzerland or Germany). You could also pay with PayPal for an added 10%. The order will be released as soon as the money has arrived.

This offer is only valid for the specified data!
If you have other requirements, multilayer boards, flexible boards, other amount, quick service etc., then please make a specific request!
As described below, the factory can produce many different types of PCBs.

Send your order or request and TEST US: use this email

Electrobrains is registered with Altium as official Protel developer bureau.
We can also draw your schematics and PCBs!
